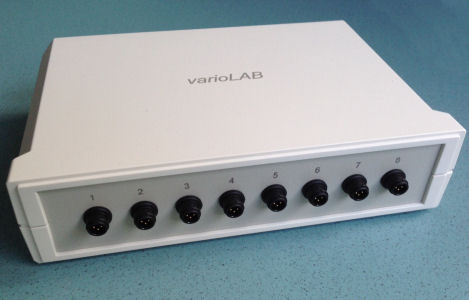

varioLAB
Stationary Data Acquisition System for Physiological Data
As a stationary amplifier, the varioLAB meets all requirements for measuring different electrical biosignals. GSR, ECG, pulse, respiration, and EEG with up to 16 channels can be measured simultaneously and in combination. The varioLAB is particularly suitable in combination with Tobii remote eye tracker products.
TECHNICAL DATA
- Dimensions: 20.5 x 14.5 x 6 cm
- Weight: 380 grams (including memory card and batteries)
- Data Collection:
- Eight Analog Measurement Channels
- Marker/Trigger Channel
- Digitization:
- A/D Converter (Eight Channels)
- Resolution: 16-bit
- Selectable Data Acquisition Rate
- Power Supply:
- 5 volts from USB interface
- Power consumption approximately 10 mA plus the consumption of connected devices
- Preamplifiers and sensors (approximately 1 mA per channel)
- Interfaces: USB interface (230 KB) for PC connection
- Display Elements:
- LED on the back of the device
(steady light when ready, blinking during measurement)
- Speaker inside the device
(outputs tones for operational status)
- LED on the back of the device
Further technical Information - PDF
varioport-b
varioport
As a mobile device for recording bioelectric signals, the varioport has long been used in various research institutions. In combination with the Tobii Glasses 2, it forms a comprehensive solution for collecting data outside the laboratory environment.
TECHNICAL DATA
- Dimensions: 12 x 6.5 x 2.2 cm
- Weight: 170 grams (including memory card and batteries)
- Channels:
- 16 analog inputs (optional 24)
- 2 digital marker inputs
- Serial marker/trigger input (256 codes)
- 2 channels for battery voltage + power consumption
- A/D Conversion:
- Resolution 16 bits (65536 steps)
- Sample rate individually selectable per channel
- Storage Media: SD card (up to 4 GB)
- Power Supply:
- Two AA-cells
- Power consumption from 1 mA (sleep mode)
- to 30 mA (full speed on all channels)
- Operating Time: up to 4 days (depending on the number of channels recorded and processor duty)
- Connections:
- Three connectors for analog and marker inputs
- Serial port to PC (up to 230 KBaud)
- Bluetooth module (optional)
- WLAN module (in preparation)
PREAMPLIFIERS
- Preamplifiers
- ECG (Electro-Cardiogram)
- EEG (Electro-Encephalogram)
- EMG (Electro-Myogram), also Facial EMG
- EOG (Eye movements)
- EDA / GSR (Skin response)
Further technical Information - PDF

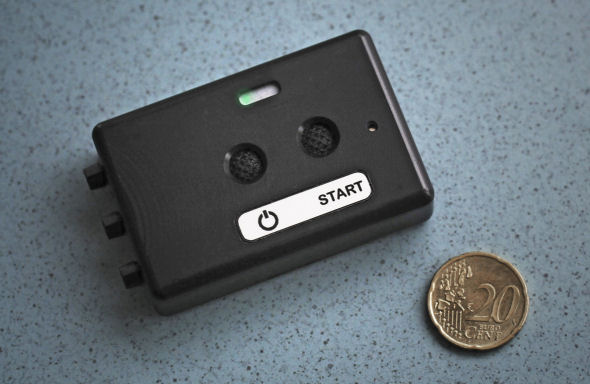

varioport-e
Recorder for physiological and environmental data
varioport-e
The newest and smallest product in the varioport family is comparable to its larger counterparts in performance and quality. With dimensions of 65 mm x 43 mm and a weight of only 50 g, it is particularly well suited to environments where authenticity is important and extensive technical equipment would disturb the experiment, for example in supermarkets or at fairs and exhibitions. This unit is also an ideal choice for studying sports activities.
Especially in combination with the Tobii Glasses 2, this solution enables an authentic implementation, since the measuring devices no longer disturb subjects after a short familiarization period.
TECHNICAL DATA
- Dimensions: 65 x 43 x 17 mm
- Weight: 50 grams (including memory card and batteries)
- Channels:
- 8 analog inputs
- Digital marker input
- Channel for battery voltage + power consumption
- Built-in preamplifiers for ECG and EDA
- Built-in 3D sensor for position and movement measurement
- A/D Conversion:
- Resolution: 16 bits (65536 steps)
- Sample rate individually selectable per channel
- Storage Media: MicroSD card (up to 4 GB)
- Power Supply:
- Built-in lithium polymer battery
- Power consumption from 60 µA (standby)
to 1,550 µA (full measurement)
- Operating Time:
- up to 14 days for standard measurements
- up to 50 days (only temperature and humidity)
- Connections:
- Serial interface (start/stop/online)
- USB (battery charging/data reading)
- Two freely assignable input sockets for measuring cables and sensors
